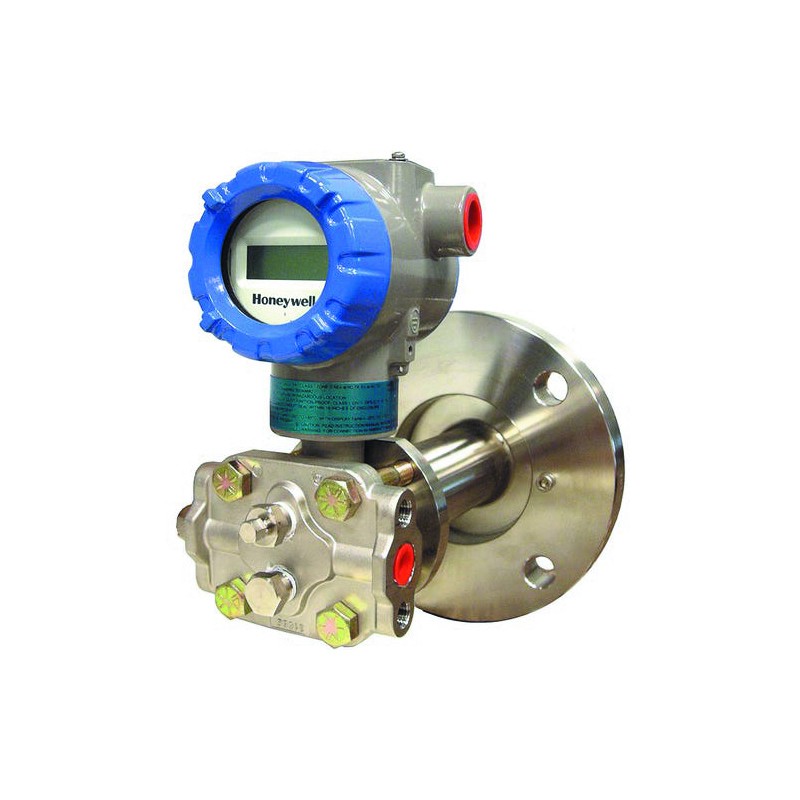

Honeywell SmartLine STF800 hydrostatic pressure transmitters are designed to replace older ST3000 Series 100 transmitter models for liquid level measurement applications.
These high accuracy flange-mount smart pressure transmitters can be installed directly on a tank flange for use in pressurized and unpressurized vessels in the chemical and hydrocarbon industries. Flush and extended diaphragm configurations are available.
- Standard accuracies up to 0.0375%, 0.025% optional
- Stability up to 0.01% upper range limit per year for 10 years
- Built-in automatic static pressure and temperature compensation
- Integral dual seal design for highest safety per ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
- Rangeability and turndown of up to 100:1
- External zero, span, and configuration capabilities
- Polarity-insensitive electrical connections
- 4-20 mA DC, HART v7, Honeywell DE, and Foundation Fieldbus communications options
- Comprehensive onboard diagnostics
- Full compliance to SIL2 and SIL3 requirements standard
- Advanced graphic LCD: Eight configurable screens for process variables, bargraphs, and trends
