CASTLE Vibration Meter

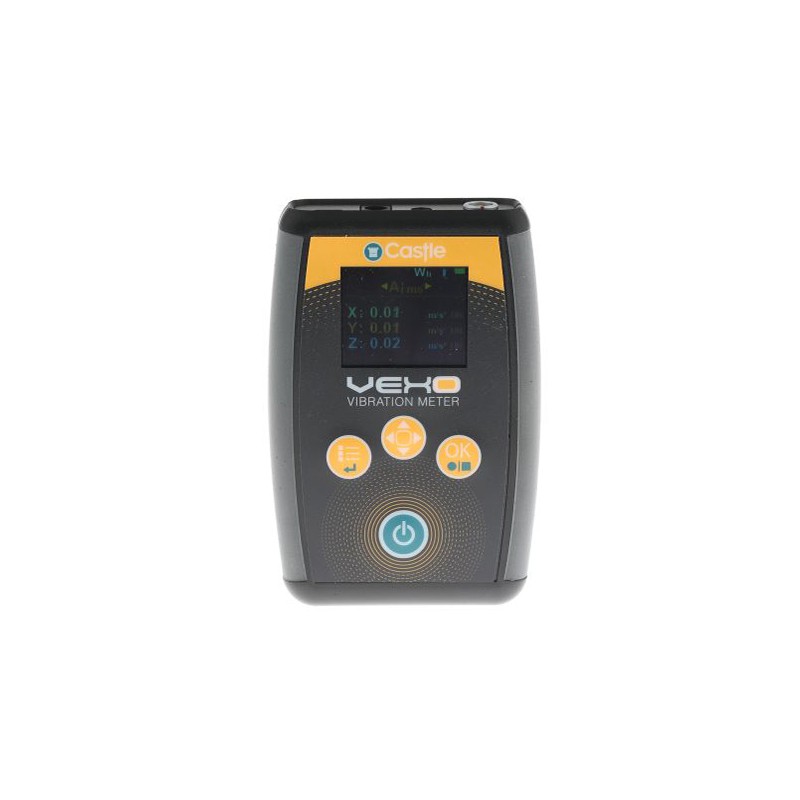

The CaSTLe Vexo GA2006H is a hand-arm vibration meter with the acceleration ranges between 0.005g and 204g. It is supplied with a triaxial accelerometer with which simultaneous X, Y and Z readings are taken and displayed on the screen in real-time. The measurements are taken in M/S2 or G, and output is given for Aeq, Peak and Vector Sum. Included with the meter is an accelerometer with 1m cable, handheld spike probe, vibdataLITE PC software, USB cable, rechargeable battery pack, battery charger, instrument carry case, pen, quick start guide, and user manual. It has an OLED display to show all the measurement parameters.

The VibdataLITE PC software (supplied) enables USB Download direct from the instrument and offers a simple, visual display of data. It can be upgraded to the separately-available option software VibdataPro ( 909-1901 ).

Features and Benefits
Large dynamic range
Large flash memory and can store up to 992 individual recordings
Overload and under range indicators
Rechargeable battery pack and charger
Rugged accelerometer and cable

ISO 5349 : 2001
ISO 8041 : 2005

Measurement Parameters Acceleration
Number of Axis 3
Maximum Acceleration 204g
Minimum Acceleration 0.005g
Maximum Operating Temperature +50°C
Minimum Operating Temperature -10°C
Display Type OLED
Keypad Type Tactile
Battery Type Rechargeable NiMH
