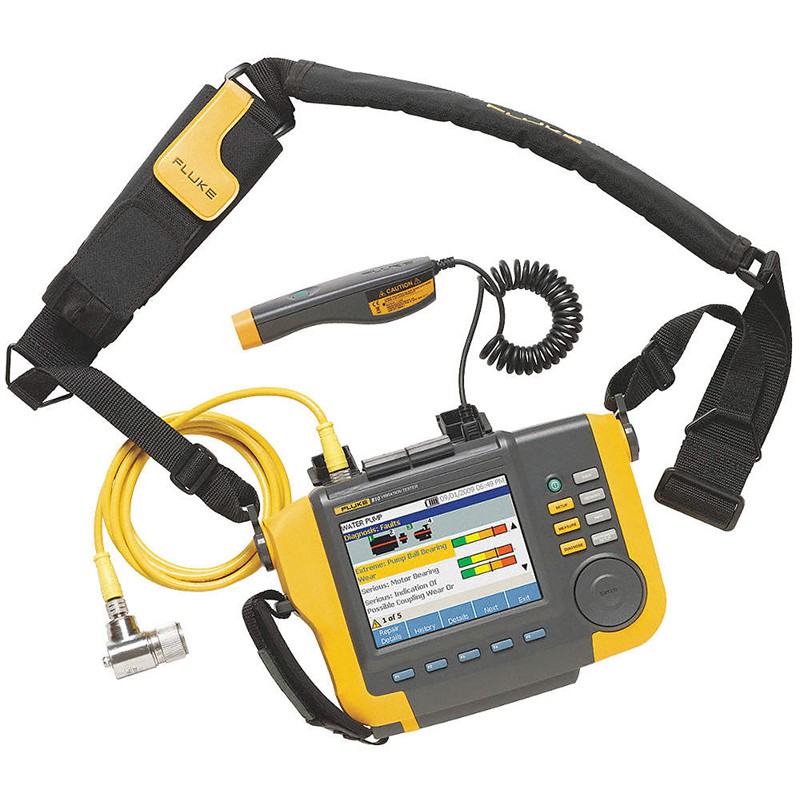

FLUKE 810 Vibration Meter

Fluke 810 Vibration Tester
The Fluke 810 Vibration tester is the most advanced troubleshooting tool for mechanical maintenance teams who need a quick answer. It takes the guesswork out of diagnosing most mechanical problems the Fluke 810 vibration meter and prioritise repair actions in simple steps. This vibration meter combines diagnosis, severity and repair recommendations to help you make a more informed decision to address critical problems correctly.

Diagnosing Problems
Most moving machinery failures come from four mechanical faults (bearings, misalignment, unbalance, looseness). This vibration meter has an auto diagnostic program, based on years of baselines collected by vibration experts. and more focus on maintenance efforts on the root cause, reducing unplanned downtime. A Tri-axial accelerometer reduces measurement times by 2/3 over single axis accelerometers and allows accurate measurements by a technician with minimal training.
Why buy the Fluke 810 over the Fluke 805 vibration meter?

The 805 vibration meter is a hand-held frontline troubleshooting that provides highly reliable, repeatable, accurate ways of measuring bearings, overall vibration and temperature. It can quickly assess the condition of a bearing with a readout from 0-16 and covers most machine types.
The 810 is a more advanced vibration meter than the 805, but still hand-held, the acts as a diagnostic tool that can solve problems on the spot. Vibration measurement can then prevent a machine from breaking and causing unnecessary damage and costs, all this can be done without any prior machine history. It locates vibration and diagnoses most mechanical faults (bearings, misalignment, unbalance and looseness).
You would choose the Fluke 810 vibration meter for its diagnostic power as it can diagnose the specific follow up requirements and location of the fault.

Features and Benefits
On-board identification and location of most common vibration mechanical faults reducing downtime.
Fault severity scale with four severity levels helps you prioritize maintenance work
Repair recommendations advise technicians on corrective action
On-board context-sensitive help provides real-time tips and guidance to new users
2GB expandable onboard memory provides enough space for your machinery’s data
Self-test function ensures optimal performance and more time on the job
Laser tachometer for an accurate machine running speed promotes confident diagnoses
Tri-axial accelerometer reduces measurement time by 2/3 over single axis accelerometers
Viewer PC Software expands data storage and tracking capacity

What's Included?
  • Fluke 810 Vibration Tester
  • Tri-axial accelerometer, magnet mount, mounting pad kit with adhesive, accelerometer quick-disconnect cable
  • Laser tachometer and storage pouch
  • Smart battery pack with cable and adapters
  • Shoulder strap and adjustable hand strap
  • Viewer PC software
  • Mini USB to USB cable
  • Getting Started Guide, illustrated quick reference guide
  • Users Manual CD-ROM
  • Carrying case

Measurement Parameters Acceleration
Number of Axis 3
Maximum Acceleration 80g
Maximum Operating Temperature +50°C
Minimum Operating Temperature 0°C
Display Type LCD
Battery Type Rechargeable Lithium-Ion
Model Number p 810
