Temtop Airing-1000 PM2.5 Air Quality Monitor Large TFT Screen

The sensor for detecting PM2.5 and PM10 concentration uses laser testing principle, so try to prevent batting, hair, etc. from entering the detector to make sure the accuracy of test data. Avoid using the detector in a humid environment to make sure the accuracy of test data. The detector is a precision instrument. Please do not bump, strike or drop it.

Features:

Built-in high-capacity battery. The LCD display screen shows the testing results, English interface easy and clear to read.
Suitable to use at home, office, in the car, outdoor and other environmental testing.
An ideal multi-function testing tool to monitor the air quality, a safeguard for family health.
Compact and lightweight design makes it comfortable to wear. detection time is short and accurate.
Easy to operate with simple system settings through 2 function buttons. Built-in large capacity lithium battery with long stand by time, can be charged by USB cable!

Parameters:

Operating environment:
Temperature range: 0~50°C
Humidity range: 10~90%
Atmospheric pressure: 1 standard atmospheric pressure
Measuring range and resolution:
PM2.5: 0-999ug/m³, resolution: 0.1ug/m³
PM10: 0-999ug/m³, resolution: 0.1ug/m³
Temperature: 0-50°C, resolution: 0.1°C
Humidity: 10-90%, resolution: 0.1%

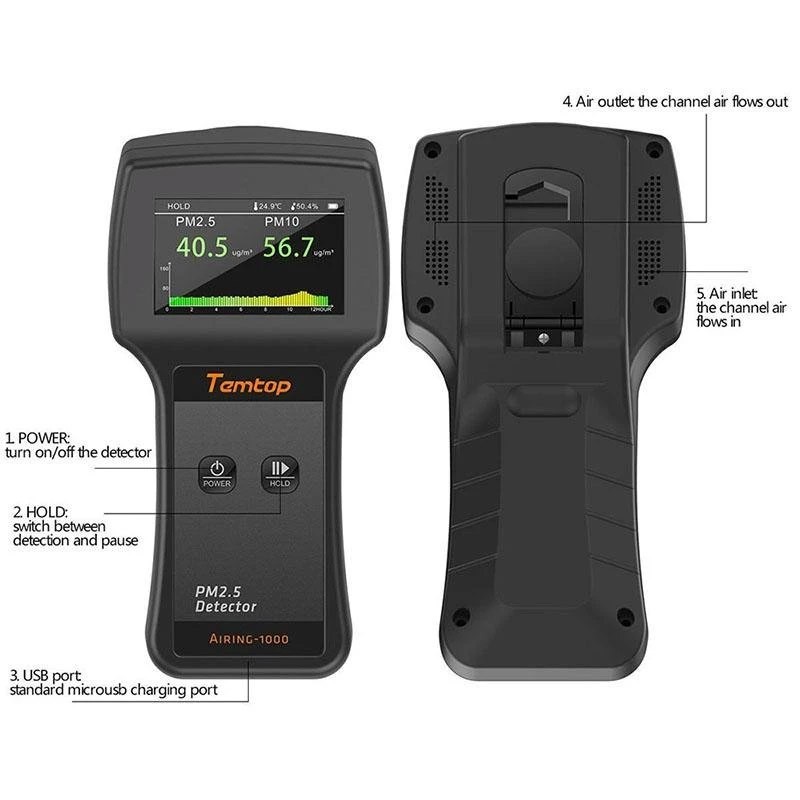

Control Panel:

POWER: turn on/off the detector
HOLD: switch between detection and pause
USB port: standard micro-usb charging port

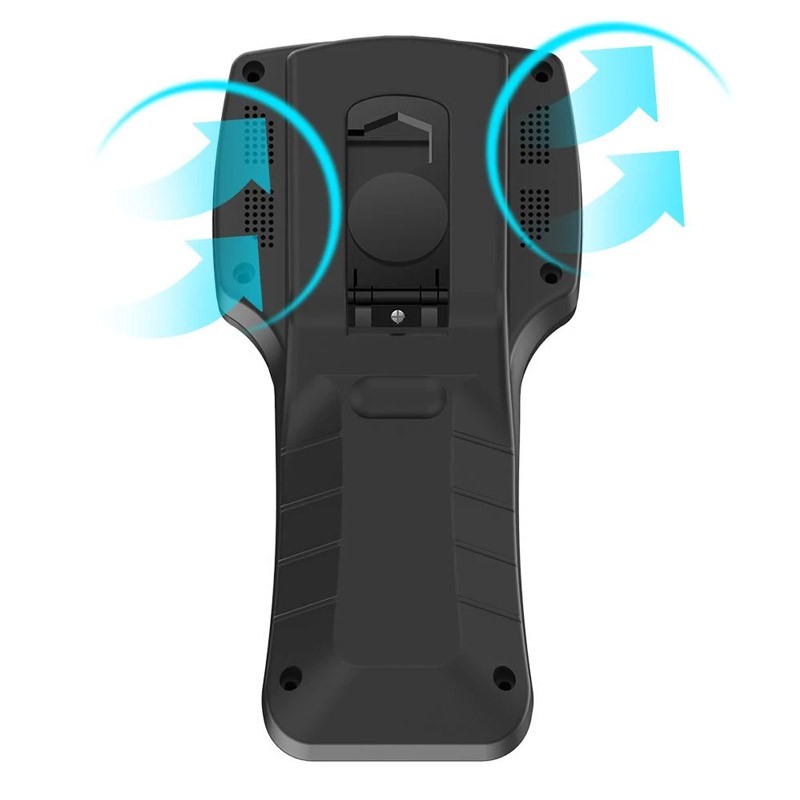

Air outlet: the channel air flows out
Air inlet: the channel air flows in

Buttons function:

Power: Press and hold the power button for 2 seconds to turn on/off the detector.
HOLD: Press this button during normal detection, HOLD" shows on the screen, indicating the function of detecting particles pauses and particle concentration and bar chart remain unchanged. Press this button again, "HOLD" disappear and the detector enters detection status.

What are displayed:

PM2. 5 display area: real-time PM2.5 concentration of current environment, unit: ug/m³
PM10 display area: real-time PM10 concentration of current environment, unit: ug/m³
Power indication: current battery level
PM2. 5 bar chart: the average PM2.5 concentration within 10 minutes
Temperature: current ambient temperature, unit: C
Humidity: current ambient humidity, unit: %

Health Parameters Guide:

PM2.5 USA Standard

Good: PM2.5 < 12 ug/m³
Moderate: 12 ≤ PM2.5 < 35.5 ug/m³
Unhealthy for Sensitive Groups: 35.5 ≤ PM2.5 < 55.5 ug/m³
Unhealthy: 55.5 ≤ PM2.5 < 150.5 ug/m³
Very Unhealthy: 150.5 ≤ PM2.5 < 250.5 ug/m³
Hazardous: PM2.5 ≥ 250.5 ug/m³
AQI Meaning
Good-Air quality is considered satisfactory, and air pollution poses little or no risk.
Moderate-Air quality is acceptable; however, for some pollutants, there may be a moderate health concern for a very small number of people who are unusually sensitive to air pollution.
Unhealthy for Sensitive Groups-Members of sensitive groups may experience health effects. The general public is not likely to be affected.
Unhealthy-Everyone may begin to experience health effects; members of sensitive groups may experience more serious health effects.
Very Unhealthy-Health alert: everyone may experience more serious health effects.
Hazardous-Health warnings of emergency conditions. The entire population is more likely to be affected.
