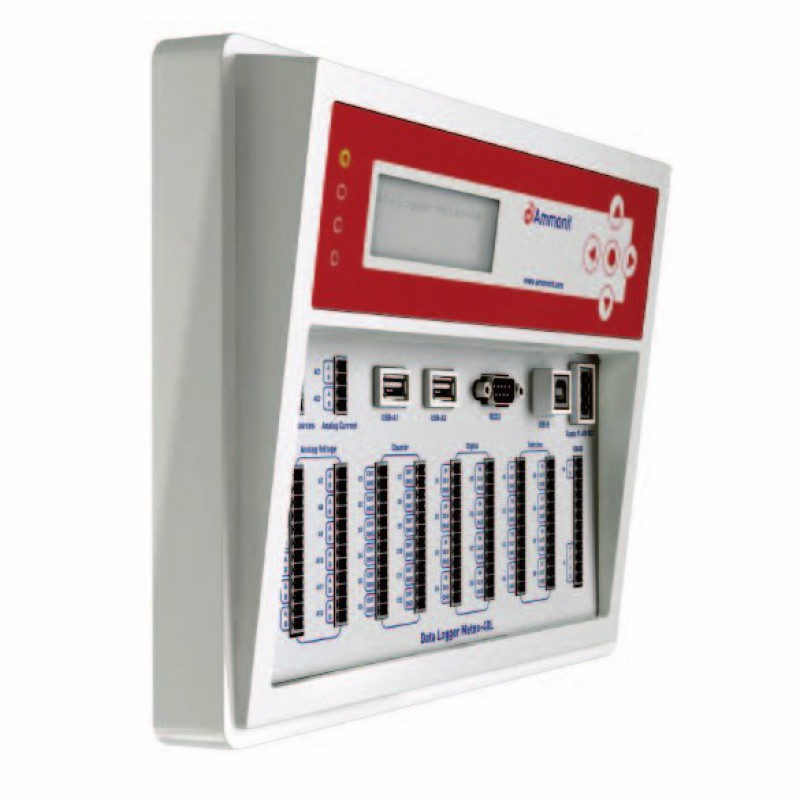

Ammonit Meteo-40 Data Logger

inputs and outputs

Product name Data logger
Model Meteo-40
Features & Benefits AMMONIT DATA LOGGER METEO-40
Meteo-40 meets the highest requirements for data security and data quality. Perform your measurement campaign with Meteo-40 to have traceable and transparent measurement data from recording to data processing. Your campaign will be compliant to the German TR6 rev. 9 and the MEASNET guideline with regard to data authenticity and data integrity.
Quick specs Inputs and Outputs
  • USB | Ethernet connection
  • Analog Current
  • Analog Voltage
  • Pulse Counter
  • RS485 master / RS485 slave
  • Digital / Serial / Status

Applications: wind site assessment, wind farm monitoring, climate research, solar assessment and monitoring, agricultural and traffic meteorology

  • Meets highest security requirements for data authenticity and integrity
  • Up to 2 GB memory, recording 1 sec. original measurement data
  • additional storage of aggregate data (min. 3 years)
  • Many channels:
Meteo-40S, 11 channels
Meteo-40M, 22 channels
Meteo-40L, 35 channels
  • High resolution (~ 16 bit, ~ 8 Hz), symmetric, differential analog channels with various input ranges to choose from (± 0.1 V, ± 1 V, ± 10 V)
  • High sensitivity analog input, e.g. temperature sensor Pt100
  • Digital channel for smart sensors, e.g., Thies TMR wind vane
  • Data communication and exchange via HTTPS, FTP, SCP connection and email
  • 1 USB port for PC connection; 2 USB ports for modem and adapter: GSM, GPRS, CDMA, WiFi; 1 Ethernet port for LAN, router.
  • Data output: Ethernet, RS485
  • Compatibility with SCADA systems
  • Integrated Linux system for maximum flexibility and adaptability
  • User-friendly web interface for configuration and controlling (no additional software needed)
  • Low power consumption (50 W solar module)
  • Reliable, flexible and user-friendly
